Plate frame heat exchanger VHX52

VHX supply plate heat exchangers from 0.03m2 to 1.8m2 for different application requirements. We manufacture plate heat exhcanger for replacement models and our own brand models, available calibre from DN25 to DN350.

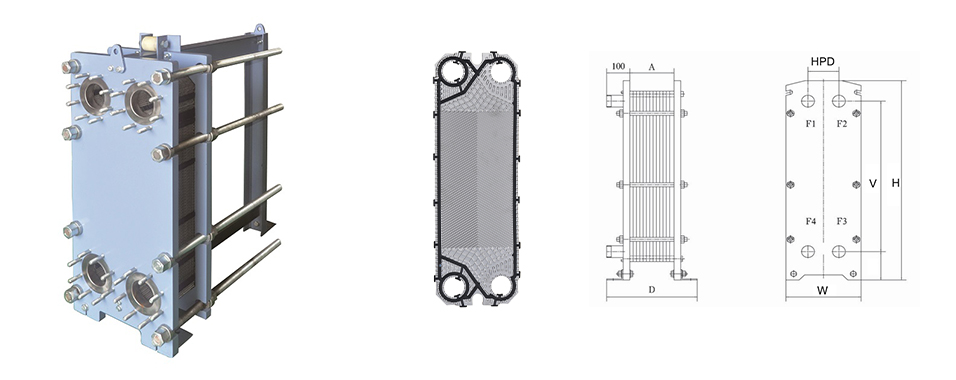

Model Height Width Min Standard Length Max Standard Length Vertical Port Distance Horizontal Port Distance Connection
VHX25 480 180 20 350 357 60 DN25
VHX51 940 330 35 600 640 140 DN50
VHX52 920 320 25 450 640 140 DN50
VHX61 835 325 50 630 625 130 DN65
VHX62 1085 325 50 630 875 130 DN65
VHX101 1084 470 120 950 719 225 DN100
VHX102 1084 470 80 640 719 225 DN100
VHX103 1235 500 115 1125 882 234 DN100
VHX104 1655 500 115 1125 1302 234 DN100
VHX151 1885 650 235 1410 1294 298 DN150
VHX152 1885 610 160 1255 1294 298 DN150
VHX201 2055 730 235 1645 1478 342 DN200
VHX301 2086 1125 215 2580 1320 600 DN300
VHX351 2920 1190 210 3360 1842 596 DN350
Available plate material: AISI304/AISI316/Titanium/Nickel/Alloy C-276/254 SMO
Available gasket material: NBR/EPDM/HNBR/NBR-HT/EPDM-HT/Viton-A/FKM/Viton-G/FKM/CR
Available connection material: rubber/stainless steel/unlined/flange
